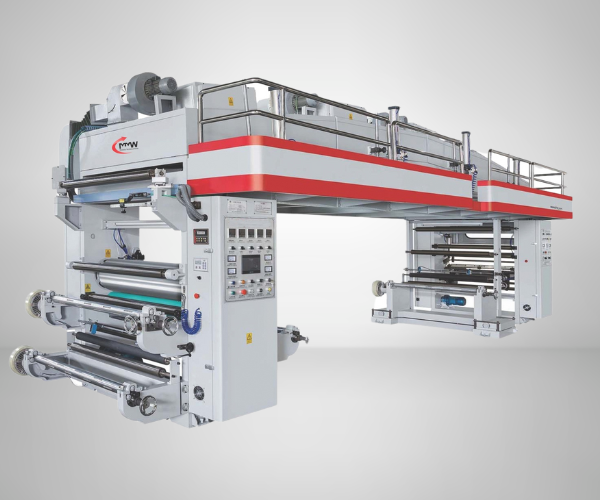

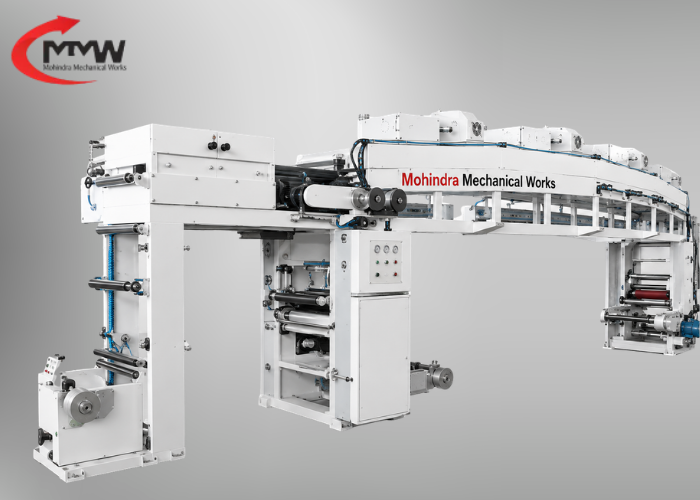

Foil Coating Machine
Technical Specifications
| Heating Mode | Yes |
|---|---|
| Brand | MOHINDRA |
| Phase | 3 phase |
| Automatic Grade | Automatic |
| Power (W) | 40 kW |
| Voltage | 380 V |
| Minimum Order Quantity | 1 Piece |
Specifications
- Working Speed: 50 M/min to 250 m/min
- Max. Web Width: 20” TO 80” (500 mm TO 2050 mm)
- Unwind Roll Diameter: 1000 mm (40”)
- Rewind Roll Diameter: 600 / 800 / 1000 approx mm
- Drying Section: Multi-zone arch type
- Heat Source: Electrical / Hot Air
- Coating Section: Gravure / Reverse Roll / Bar system / Air knife
- Laminating Section: Chilling / Heating Roller with Pneumatic Nip Roll
- Drive: Variable Speed: DC/AC
- Unwind / Rewind: Simplex / Duplex / Surface
