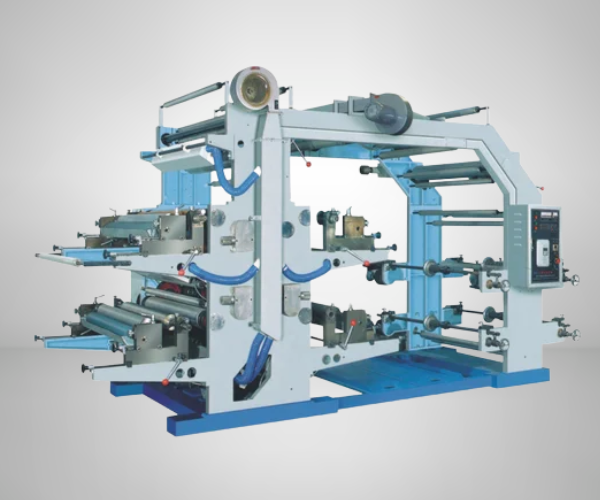

Non-Woven Bag Printing Machine

Technical Specifications

Printing Speed 150 m/min
No. Of Colors Multicolor
Usage/Application Paper
Material Mild Steel
Power Required 220 v
Machine Type Automatic
Color Printing Color Printing
Brand/Make Mohindra
Max Bag Size (inch X inch) 30" x 52" to 63" x 52"
Minimum Order Quantity 1 Piece

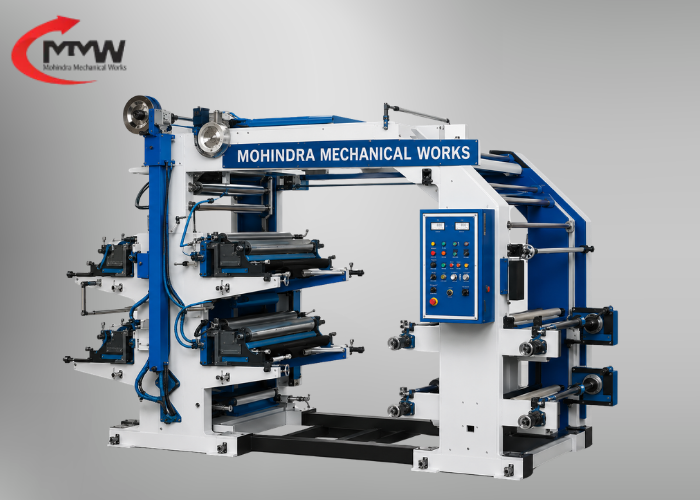

Non Woven Bag Printing Machine

Specifications

  • No. Of Colours: 1 To 8
  • Web Width: 500 mm To 2050 mm (20” To 80”)
  • Unwind/ Rewind Reel Dia: 1000 mm (40”)
  • Unwind/ Rewind Core Id: 76 mm And 152 mm
  • Range Of Cylinder Circumference: 250 mm – 1270 mm (10” To 50”)
  • Printing Speed: 80 Mtr Per Min (variable As Per No. Of Colours Of Machine)
  • Power Requirement: 4 Colour Machine: 16 Kw / 6 Colour Machine: 20 Kw / 8 Colour Machine: 24 Kw
  • Floor Space Length: Variable As Per The Machine
  • Material That Can Be Printed: Hm, Ld, Nonwoven, Lldpe, Paper Polyester Film, Foil Etc
  • Available Models: 2, 4, 6, and 8 Colours
  • Web Width: 500 mm To 2050 mm
